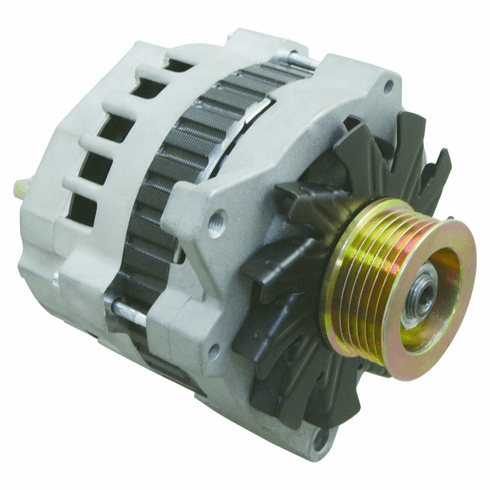

NEW 90 89 CHEVROLET CAPRICE 4.3L V6 5.0L V8 10463086 10463099 REPLACEMENT ALTERNATOR
**All parts are 100% brand new and meet or exceed OEM specifications.**
**Units may differ in color from listing photos and are for U.S. Models only (unless otherwise noted)**
**Fitment information below is accurate to the best of our knowledge and should be used for reference only. If you have any questions about fitment, please call our parts specialist before placing your order. For further assistance call 586-257-1515
Product Description
Description: Alternator
OEM(s): Chevrolet, Delco, Pontiac
Family: Delco CS130
Voltage: 12
Amps: 105
Rotation: CW
Mount Type: Spool
Mtg Ear 1 Hole: M8x1.25 Threaded
Mtg Ear 2 Hole: 10.2mm Unthreaded
Mtg Ear 1 Thickness: 0.63in / 16mm
Mtg Ear 2 Thickness: 2.362in / 60mm
Regulator Clock: 0.458333333333333
Fan Location: External
Regulator Location: Internal
B+ Terminal: M6x1.00
P Terminal: Spade
L Terminal: Spade
IG Terminal: Spade
S Terminal: Spade
Polarity: Negative
Pulley Grooves: 6
Pulley Type: Solid
Pulley OD: 2.362in / 60mm
Notes: (1) M8-1.25 Hole in SRE Housing
References:
AC Delco Tools 321-377, 321-383, 321-390, 334-2336, 334-2361, RM1001, RM1216
Beck Arnley 186-6122, 188-6122
Bosch AL651X
Delco 10463086, 10463092, 10463099, 1101253, 1101254, 1101255, 321-383, 334-2336
Denso 210-5144
Lucas Electric LRA01441, LRA02020
GM 10463086, 10463092, 10463099
Remy Light Duty 20383
Wilson 90-01-4209, 90-01-4209N
Used On:
Buick ROADMASTER 5.0L(305) V 1991
Buick ROADMASTER 5.7L(350) V 1992
Buick Roadmaster 5000cc, 5.0L/305CI V8 1991
Buick Roadmaster 5700cc, 5.7L/350CI V8 1992
Cadillac BROUGHAM 5.0L(305) V 1991, 1992
Cadillac BROUGHAM 5.7L(350) V 1991, 1992
Cadillac Fleetwood 5000cc, 5.0L/307CI V8 1991, 1992
Cadillac Fleetwood 5700cc, 5.7L/350CI V8 1991, 1992
Chevrolet ASTRO VAN 4.3L(262) V 1987, 1988, 1989
Chevrolet ASTRO VAN 4.3L(262) V 1987, 1988, 1989
Chevrolet Astro 4300cc, 4.3L/262CI V6 1987, 1988, 1989
Chevrolet BLAZER 5.0L(305) V 1987
Chevrolet BLAZER 5.0L(305) V 1987
Chevrolet Blazer 5000cc, 5.0L/305CI V8 1987
Chevrolet C / K / R / V SERIES PICKUPS 4.3L(262) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 4.3L(262) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 4.3L(262) V 1988, 1989
Chevrolet C / K / R / V SERIES PICKUPS 4.3L(262) V 1988, 1989
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1988
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1988
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1989
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1989
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
Chevrolet C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1987
Chevrolet C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1987, 1988, 1989, 1990, 1991, 1992
Chevrolet C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1988, 1989, 1990, 1991, 1992
Chevrolet C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1991, 1992
Chevrolet C / K / R / V SERIES PICKUPS 6.5L(395) V8 (Diesel 1992
Chevrolet C / K / R / V SERIES PICKUPS 6.5L(395) V8 (Diesel 1992
Chevrolet C Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
Chevrolet C Series 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet C Series 5000cc, 5L/305CI V8 1987
Chevrolet C1500 4300cc, 4.3L/262CI V6 1988, 1989
Chevrolet C1500 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet C2500 4300cc, 4.3L/262CI V6 1988, 1989
Chevrolet C2500 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet CAMARO 5.0L(305) V 1988, 1989
Chevrolet CAMARO 5.0L(305) V 1988, 1989
Chevrolet CAMARO 5.0L(305) V 1988, 1989, 1990, 1991
Chevrolet CAMARO 5.0L(305) V 1990, 1991
Chevrolet CAMARO 5.0L(305) V 1992
Chevrolet CAMARO 5.0L(305) V 1992
Chevrolet CAMARO 5.7L(350) V 1988, 1989
Chevrolet CAMARO 5.7L(350) V 1990, 1991, 1992
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989, 1990, 1991, 1992
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989, 1990, 1991, 1992
Chevrolet Camaro 5700cc, 5.7L/350CI V8 1988, 1989
Chevrolet Camaro 5700cc, 5.7L/350CI V8 1988, 1989
Chevrolet Camaro 5700cc, 5.7L/350CI V8 1988, 1989
Chevrolet Camaro 5736cc, 5.7L/350CI V8 1988, 1989
Chevrolet Camaro 5736cc, 5.7L/350CI V8 1988, 1989, 1990, 1991, 1992
Chevrolet Caprice Sedan 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet Caprice Sedan 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet Caprice Wagon 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet CAPRICE 4.3L(262) V 1989, 1990
Chevrolet CAPRICE 4.3L(262) V 1989, 1990
Chevrolet CAPRICE 4.3L(262) V 1992, 1993
Chevrolet CAPRICE 5.0L(305) V 1989, 1990
Chevrolet CAPRICE 5.0L(305) V 1989, 1990
Chevrolet CAPRICE 5.0L(305) V 1991, 1992
Chevrolet CAPRICE 5.0L(305) V 1993
Chevrolet CAPRICE 5.7L(350) V 1991, 1992, 1993
Chevrolet Caprice 4300cc, 4.3L/262CI V6 1989, 1990
Chevrolet Caprice 4300cc, 4.3L/262CI V6 1989, 1990
Chevrolet Caprice 4300cc, 4.3L/262CI V6 1989, 1990
Chevrolet Caprice 4300cc, 4.3L/262CI V6 1989, 1990
Chevrolet Caprice 4300cc, 4.3L/262CI V6 1989, 1990, 1992, 1993
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1989
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1990
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1991, 1992, 1993
Chevrolet Caprice 5736cc, 5.7L/350CI V8 1991, 1992, 1993
Chevrolet G SERIES VANS 4.3L(262) V 1987
Chevrolet G SERIES VANS 4.3L(262) V 1987
Chevrolet G SERIES VANS 4.3L(262) V 1988, 1989, 1990
Chevrolet G SERIES VANS 4.3L(262) V 1988, 1989, 1990
Chevrolet G SERIES VANS 4.3L(262) V 1991
Chevrolet G SERIES VANS 4.3L(262) V 1991
Chevrolet G SERIES VANS 4.3L(262) V 1991
Chevrolet G SERIES VANS 4.3L(262) V 1991
Chevrolet G SERIES VANS 5.0L(305) V 1987
Chevrolet G SERIES VANS 5.0L(305) V 1987
Chevrolet G SERIES VANS 5.0L(305) V 1988, 1989, 1990, 1991
Chevrolet G SERIES VANS 5.0L(305) V 1988, 1989, 1990, 1991
Chevrolet G SERIES VANS 5.7L(350) V 1987, 1988
Chevrolet G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
Chevrolet G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
Chevrolet G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
Chevrolet G SERIES VANS 5.7L(350) V 1989, 1990, 1991
Chevrolet G SERIES VANS 7.4L(454) V 1990
Chevrolet G Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
Chevrolet G Series 5000cc, 5.0L/305CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G Series 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G10 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
Chevrolet G10 5000cc, 5.0L/305CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G10 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G20 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
Chevrolet G20 5000cc, 5.0L/305CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G20 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G30 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
Chevrolet G30 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet K Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
Chevrolet K Series 5000cc, 5.0L/305CI V8 1987, 1988, 1989
Chevrolet K10 4300cc, 4.3L/262CI V6 1987
Chevrolet K10 5000cc, 5.0L/305CI V8 1987
Chevrolet K1500 4300cc, 4.3L/262CI V6 1988, 1989
Chevrolet K1500 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet K2500 4300cc, 4.3L/262CI V6 1988, 1989
Chevrolet K2500 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet R Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
Chevrolet R Series 5000cc, 5.0L/305CI V8 1987
Chevrolet R Series 5000cc, 5L/305CI V8 1988, 1989
Chevrolet R10 4300cc, 4.3L/262CI V6 1987
Chevrolet R10 5000cc, 5.0L/305CI V8 1987
Chevrolet R20 4300cc, 4.3L/262CI V6 1987
Chevrolet R20 5000cc, 5.0L/305CI V8 1987
Chevrolet SUBURBAN 5.0L(305) V 1987
Chevrolet SUBURBAN 5.0L(305) V 1987
Chevrolet Suburban 5000cc, 5L/305CI V8 1987
Chevrolet V Series Pickups 4300cc, 4.3L/262CI V6 1988, 1989
Chevrolet V Series Pickups 5000cc, 5L/305CI V8 1988, 1989
Chevrolet V Series 4300cc, 4.3L/262CI V6 1987
Chevrolet V Series 5000cc, 5.0L/305CI V8 1987
Chevrolet V10 4300cc, 4.3L/262CI V6 1987
Chevrolet V10 5000cc, 5.0L/305CI V8 1987
Chevrolet/GMC All Models (By Engine) - Diesel GM 6.2L(379) V8 Ds 1987, 1988, 1989, 1990, 1991, 1992
Chevrolet/GMC All Models (By Engine) - Gas GM 7.4L(454) V8 Ga 1987, 1988, 1989
Chevrolet/GMC All Models (By Engine) - Gas GM 7.4L(454) V8 Ga 1987, 1988, 1989
GMC C / K / R / V SERIES PICKUPS 4.3L(262) V 1987
GMC C / K / R / V SERIES PICKUPS 4.3L(262) V 1987
GMC C / K / R / V SERIES PICKUPS 4.3L(262) V 1988, 1989
GMC C / K / R / V SERIES PICKUPS 4.3L(262) V 1988, 1989
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1987
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1987
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1988
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1988
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1989
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1989
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
GMC C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1987
GMC C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1987, 1988, 1989, 1990, 1991, 1992
GMC C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1988, 1989, 1990, 1991, 1992
GMC C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1991, 1992
GMC C / K / R / V SERIES PICKUPS 6.5L(395) V8 (Diesel 1992
GMC C / K / R / V SERIES PICKUPS 6.5L(395) V8 (Diesel 1992
GMC C Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC C Series 5000cc, 5.0L/305CI V8 1988, 1989
GMC C Series 5000cc, 5L/305CI V8 1987
GMC C1500 4300cc, 4.3L/262CI V6 1988, 1989
GMC C1500 5000cc, 5.0L/305CI V8 1988, 1989
GMC C2500 4300cc, 4.3L/262CI V6 1988, 1989
GMC C2500 5000cc, 5.0L/305CI V8 1988, 1989
GMC G SERIES VANS 4.3L(262) V 1987
GMC G SERIES VANS 4.3L(262) V 1987
GMC G SERIES VANS 4.3L(262) V 1988, 1989, 1990
GMC G SERIES VANS 4.3L(262) V 1988, 1989, 1990
GMC G SERIES VANS 4.3L(262) V 1991
GMC G SERIES VANS 4.3L(262) V 1991
GMC G SERIES VANS 4.3L(262) V 1991
GMC G SERIES VANS 4.3L(262) V 1991
GMC G SERIES VANS 5.0L(305) V 1987
GMC G SERIES VANS 5.0L(305) V 1987
GMC G SERIES VANS 5.0L(305) V 1988, 1989, 1990, 1991
GMC G SERIES VANS 5.0L(305) V 1988, 1989, 1990, 1991
GMC G SERIES VANS 5.7L(350) V 1987, 1988
GMC G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
GMC G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
GMC G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
GMC G SERIES VANS 5.7L(350) V 1989, 1990, 1991
GMC G SERIES VANS 7.4L(454) V 1990
GMC G1500 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
GMC G1500 5000cc, 5.0L/305CI V8 1987, 1988, 1989, 1990, 1991
GMC G1500 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
GMC G2500 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
GMC G2500 5000cc, 5.0L/305CI V8 1987, 1988, 1989, 1990, 1991
GMC G2500 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
GMC G3500 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
GMC G3500 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
GMC JIMMY 5.0L(305) V 1987
GMC JIMMY 5.0L(305) V 1987
GMC JIMMY 5.7L(350) V 1989
GMC Jimmy 5000cc, 5.0L/305CI V8 1987
GMC K Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC K Series 5000cc, 5.0L/305CI V8 1987, 1988, 1989
GMC K1500 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC K1500 5000cc, 5.0L/305CI V8 1987, 1988, 1989
GMC K2500 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC K2500 5000cc, 5.0L/305CI V8 1987, 1988, 1989
GMC R Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC R Series 5000cc, 5.0L/305CI V8 1987
GMC R Series 5000cc, 5L/305CI V8 1988, 1989
GMC R1500 4300cc, 4.3L/262CI V6 1987
GMC R1500 5000cc, 5.0L/305CI V8 1987
GMC R2500 4300cc, 4.3L/262CI V6 1987
GMC R2500 5000cc, 5.0L/305CI V8 1987
GMC SAFARI VAN 4.3L(262) V 1987, 1988, 1989
GMC SAFARI VAN 4.3L(262) V 1987, 1988, 1989
GMC Safari 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC SUBURBAN 5.0L(305) V 1987
GMC SUBURBAN 5.0L(305) V 1987
GMC Suburban 5012cc, 5.0L/305CI V6 1987
GMC V Series 4300cc, 4.3L/262CI V6 1988, 1989
GMC V Series 5000cc, 5L/305CI V8 1988, 1989
GMC V1500 4300cc, 4.3L/262CI V6 1987
GMC V1500 5000cc, 5.0L/305CI V8 1987
Oldsmobile CUSTOM CRUISER 5.0L(305) V 1991, 1992
Oldsmobile CUSTOM CRUISER 5.7L(350) V 1992
Oldsmobile Custom Cruiser 5000cc, 5.0L/305CI V8 1991, 1992
Oldsmobile Custom Cruiser 5733cc, 5.7L/350CI V8 1992
Pontiac Firebird Base 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Base 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am GTA 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am GTA 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am GTA 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am GTA 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac FIREBIRD 5.0L(305) V 1988, 1989
Pontiac FIREBIRD 5.0L(305) V 1988, 1989
Pontiac FIREBIRD 5.0L(305) V 1988, 1989, 1990, 1991
Pontiac FIREBIRD 5.0L(305) V 1990, 1991
Pontiac FIREBIRD 5.0L(305) V 1992
Pontiac FIREBIRD 5.0L(305) V 1992
Pontiac FIREBIRD 5.7L(350) V 1988, 1989, 1990, 1991, 1992
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988, 1989
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988, 1989
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988, 1989, 1990, 1991, 1992
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988, 1989, 1990, 1991, 1992
Pontiac Firebird 5700cc, 5.7L/350CI V8 1988
Pontiac Firebird 5700cc, 5.7L/350CI V8 1988, 1989
Pontiac Firebird 5700cc, 5.7L/350CI V8 1988, 1989
Pontiac Firebird 5733cc, 5.7L/350CI V8 1988, 1989, 1990, 1991, 1992
MCR PART NUMBER: 7917N
OEM(s): Chevrolet, Delco, Pontiac
Family: Delco CS130
Voltage: 12
Amps: 105
Rotation: CW
Mount Type: Spool
Mtg Ear 1 Hole: M8x1.25 Threaded
Mtg Ear 2 Hole: 10.2mm Unthreaded
Mtg Ear 1 Thickness: 0.63in / 16mm
Mtg Ear 2 Thickness: 2.362in / 60mm
Regulator Clock: 0.458333333333333
Fan Location: External
Regulator Location: Internal
B+ Terminal: M6x1.00
P Terminal: Spade
L Terminal: Spade
IG Terminal: Spade
S Terminal: Spade
Polarity: Negative
Pulley Grooves: 6
Pulley Type: Solid
Pulley OD: 2.362in / 60mm
Notes: (1) M8-1.25 Hole in SRE Housing
References:
AC Delco Tools 321-377, 321-383, 321-390, 334-2336, 334-2361, RM1001, RM1216
Beck Arnley 186-6122, 188-6122
Bosch AL651X
Delco 10463086, 10463092, 10463099, 1101253, 1101254, 1101255, 321-383, 334-2336
Denso 210-5144
Lucas Electric LRA01441, LRA02020
GM 10463086, 10463092, 10463099
Remy Light Duty 20383
Wilson 90-01-4209, 90-01-4209N
Used On:
Buick ROADMASTER 5.0L(305) V 1991
Buick ROADMASTER 5.7L(350) V 1992
Buick Roadmaster 5000cc, 5.0L/305CI V8 1991
Buick Roadmaster 5700cc, 5.7L/350CI V8 1992
Cadillac BROUGHAM 5.0L(305) V 1991, 1992
Cadillac BROUGHAM 5.7L(350) V 1991, 1992
Cadillac Fleetwood 5000cc, 5.0L/307CI V8 1991, 1992
Cadillac Fleetwood 5700cc, 5.7L/350CI V8 1991, 1992
Chevrolet ASTRO VAN 4.3L(262) V 1987, 1988, 1989
Chevrolet ASTRO VAN 4.3L(262) V 1987, 1988, 1989
Chevrolet Astro 4300cc, 4.3L/262CI V6 1987, 1988, 1989
Chevrolet BLAZER 5.0L(305) V 1987
Chevrolet BLAZER 5.0L(305) V 1987
Chevrolet Blazer 5000cc, 5.0L/305CI V8 1987
Chevrolet C / K / R / V SERIES PICKUPS 4.3L(262) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 4.3L(262) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 4.3L(262) V 1988, 1989
Chevrolet C / K / R / V SERIES PICKUPS 4.3L(262) V 1988, 1989
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1988
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1988
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1989
Chevrolet C / K / R / V SERIES PICKUPS 5.0L(305) V 1989
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
Chevrolet C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
Chevrolet C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1987
Chevrolet C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1987, 1988, 1989, 1990, 1991, 1992
Chevrolet C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1988, 1989, 1990, 1991, 1992
Chevrolet C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1991, 1992
Chevrolet C / K / R / V SERIES PICKUPS 6.5L(395) V8 (Diesel 1992
Chevrolet C / K / R / V SERIES PICKUPS 6.5L(395) V8 (Diesel 1992
Chevrolet C Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
Chevrolet C Series 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet C Series 5000cc, 5L/305CI V8 1987
Chevrolet C1500 4300cc, 4.3L/262CI V6 1988, 1989
Chevrolet C1500 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet C2500 4300cc, 4.3L/262CI V6 1988, 1989
Chevrolet C2500 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet CAMARO 5.0L(305) V 1988, 1989
Chevrolet CAMARO 5.0L(305) V 1988, 1989
Chevrolet CAMARO 5.0L(305) V 1988, 1989, 1990, 1991
Chevrolet CAMARO 5.0L(305) V 1990, 1991
Chevrolet CAMARO 5.0L(305) V 1992
Chevrolet CAMARO 5.0L(305) V 1992
Chevrolet CAMARO 5.7L(350) V 1988, 1989
Chevrolet CAMARO 5.7L(350) V 1990, 1991, 1992
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989, 1990, 1991, 1992
Chevrolet Camaro 5000cc, 5.0L/305CI V8 1988, 1989, 1990, 1991, 1992
Chevrolet Camaro 5700cc, 5.7L/350CI V8 1988, 1989
Chevrolet Camaro 5700cc, 5.7L/350CI V8 1988, 1989
Chevrolet Camaro 5700cc, 5.7L/350CI V8 1988, 1989
Chevrolet Camaro 5736cc, 5.7L/350CI V8 1988, 1989
Chevrolet Camaro 5736cc, 5.7L/350CI V8 1988, 1989, 1990, 1991, 1992
Chevrolet Caprice Sedan 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet Caprice Sedan 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet Caprice Wagon 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet CAPRICE 4.3L(262) V 1989, 1990
Chevrolet CAPRICE 4.3L(262) V 1989, 1990
Chevrolet CAPRICE 4.3L(262) V 1992, 1993
Chevrolet CAPRICE 5.0L(305) V 1989, 1990
Chevrolet CAPRICE 5.0L(305) V 1989, 1990
Chevrolet CAPRICE 5.0L(305) V 1991, 1992
Chevrolet CAPRICE 5.0L(305) V 1993
Chevrolet CAPRICE 5.7L(350) V 1991, 1992, 1993
Chevrolet Caprice 4300cc, 4.3L/262CI V6 1989, 1990
Chevrolet Caprice 4300cc, 4.3L/262CI V6 1989, 1990
Chevrolet Caprice 4300cc, 4.3L/262CI V6 1989, 1990
Chevrolet Caprice 4300cc, 4.3L/262CI V6 1989, 1990
Chevrolet Caprice 4300cc, 4.3L/262CI V6 1989, 1990, 1992, 1993
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1989
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1989, 1990
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1990
Chevrolet Caprice 5000cc, 5.0L/305CI V8 1991, 1992, 1993
Chevrolet Caprice 5736cc, 5.7L/350CI V8 1991, 1992, 1993
Chevrolet G SERIES VANS 4.3L(262) V 1987
Chevrolet G SERIES VANS 4.3L(262) V 1987
Chevrolet G SERIES VANS 4.3L(262) V 1988, 1989, 1990
Chevrolet G SERIES VANS 4.3L(262) V 1988, 1989, 1990
Chevrolet G SERIES VANS 4.3L(262) V 1991
Chevrolet G SERIES VANS 4.3L(262) V 1991
Chevrolet G SERIES VANS 4.3L(262) V 1991
Chevrolet G SERIES VANS 4.3L(262) V 1991
Chevrolet G SERIES VANS 5.0L(305) V 1987
Chevrolet G SERIES VANS 5.0L(305) V 1987
Chevrolet G SERIES VANS 5.0L(305) V 1988, 1989, 1990, 1991
Chevrolet G SERIES VANS 5.0L(305) V 1988, 1989, 1990, 1991
Chevrolet G SERIES VANS 5.7L(350) V 1987, 1988
Chevrolet G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
Chevrolet G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
Chevrolet G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
Chevrolet G SERIES VANS 5.7L(350) V 1989, 1990, 1991
Chevrolet G SERIES VANS 7.4L(454) V 1990
Chevrolet G Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
Chevrolet G Series 5000cc, 5.0L/305CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G Series 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G10 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
Chevrolet G10 5000cc, 5.0L/305CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G10 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G20 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
Chevrolet G20 5000cc, 5.0L/305CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G20 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet G30 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
Chevrolet G30 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
Chevrolet K Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
Chevrolet K Series 5000cc, 5.0L/305CI V8 1987, 1988, 1989
Chevrolet K10 4300cc, 4.3L/262CI V6 1987
Chevrolet K10 5000cc, 5.0L/305CI V8 1987
Chevrolet K1500 4300cc, 4.3L/262CI V6 1988, 1989
Chevrolet K1500 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet K2500 4300cc, 4.3L/262CI V6 1988, 1989
Chevrolet K2500 5000cc, 5.0L/305CI V8 1988, 1989
Chevrolet R Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
Chevrolet R Series 5000cc, 5.0L/305CI V8 1987
Chevrolet R Series 5000cc, 5L/305CI V8 1988, 1989
Chevrolet R10 4300cc, 4.3L/262CI V6 1987
Chevrolet R10 5000cc, 5.0L/305CI V8 1987
Chevrolet R20 4300cc, 4.3L/262CI V6 1987
Chevrolet R20 5000cc, 5.0L/305CI V8 1987
Chevrolet SUBURBAN 5.0L(305) V 1987
Chevrolet SUBURBAN 5.0L(305) V 1987
Chevrolet Suburban 5000cc, 5L/305CI V8 1987
Chevrolet V Series Pickups 4300cc, 4.3L/262CI V6 1988, 1989
Chevrolet V Series Pickups 5000cc, 5L/305CI V8 1988, 1989
Chevrolet V Series 4300cc, 4.3L/262CI V6 1987
Chevrolet V Series 5000cc, 5.0L/305CI V8 1987
Chevrolet V10 4300cc, 4.3L/262CI V6 1987
Chevrolet V10 5000cc, 5.0L/305CI V8 1987
Chevrolet/GMC All Models (By Engine) - Diesel GM 6.2L(379) V8 Ds 1987, 1988, 1989, 1990, 1991, 1992
Chevrolet/GMC All Models (By Engine) - Gas GM 7.4L(454) V8 Ga 1987, 1988, 1989
Chevrolet/GMC All Models (By Engine) - Gas GM 7.4L(454) V8 Ga 1987, 1988, 1989
GMC C / K / R / V SERIES PICKUPS 4.3L(262) V 1987
GMC C / K / R / V SERIES PICKUPS 4.3L(262) V 1987
GMC C / K / R / V SERIES PICKUPS 4.3L(262) V 1988, 1989
GMC C / K / R / V SERIES PICKUPS 4.3L(262) V 1988, 1989
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1987
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1987
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1988
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1988
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1989
GMC C / K / R / V SERIES PICKUPS 5.0L(305) V 1989
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1987
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
GMC C / K / R / V SERIES PICKUPS 5.7L(350) V 1988, 1989
GMC C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1987
GMC C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1987, 1988, 1989, 1990, 1991, 1992
GMC C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1988, 1989, 1990, 1991, 1992
GMC C / K / R / V SERIES PICKUPS 6.2L(379) V8 (Diesel 1991, 1992
GMC C / K / R / V SERIES PICKUPS 6.5L(395) V8 (Diesel 1992
GMC C / K / R / V SERIES PICKUPS 6.5L(395) V8 (Diesel 1992
GMC C Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC C Series 5000cc, 5.0L/305CI V8 1988, 1989
GMC C Series 5000cc, 5L/305CI V8 1987
GMC C1500 4300cc, 4.3L/262CI V6 1988, 1989
GMC C1500 5000cc, 5.0L/305CI V8 1988, 1989
GMC C2500 4300cc, 4.3L/262CI V6 1988, 1989
GMC C2500 5000cc, 5.0L/305CI V8 1988, 1989
GMC G SERIES VANS 4.3L(262) V 1987
GMC G SERIES VANS 4.3L(262) V 1987
GMC G SERIES VANS 4.3L(262) V 1988, 1989, 1990
GMC G SERIES VANS 4.3L(262) V 1988, 1989, 1990
GMC G SERIES VANS 4.3L(262) V 1991
GMC G SERIES VANS 4.3L(262) V 1991
GMC G SERIES VANS 4.3L(262) V 1991
GMC G SERIES VANS 4.3L(262) V 1991
GMC G SERIES VANS 5.0L(305) V 1987
GMC G SERIES VANS 5.0L(305) V 1987
GMC G SERIES VANS 5.0L(305) V 1988, 1989, 1990, 1991
GMC G SERIES VANS 5.0L(305) V 1988, 1989, 1990, 1991
GMC G SERIES VANS 5.7L(350) V 1987, 1988
GMC G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
GMC G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
GMC G SERIES VANS 5.7L(350) V 1987, 1988, 1989, 1990, 1991
GMC G SERIES VANS 5.7L(350) V 1989, 1990, 1991
GMC G SERIES VANS 7.4L(454) V 1990
GMC G1500 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
GMC G1500 5000cc, 5.0L/305CI V8 1987, 1988, 1989, 1990, 1991
GMC G1500 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
GMC G2500 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
GMC G2500 5000cc, 5.0L/305CI V8 1987, 1988, 1989, 1990, 1991
GMC G2500 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
GMC G3500 4300cc, 4.3L/262CI V6 1987, 1988, 1989, 1990, 1991
GMC G3500 5700cc, 5.7L/350CI V8 1987, 1988, 1989, 1990, 1991
GMC JIMMY 5.0L(305) V 1987
GMC JIMMY 5.0L(305) V 1987
GMC JIMMY 5.7L(350) V 1989
GMC Jimmy 5000cc, 5.0L/305CI V8 1987
GMC K Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC K Series 5000cc, 5.0L/305CI V8 1987, 1988, 1989
GMC K1500 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC K1500 5000cc, 5.0L/305CI V8 1987, 1988, 1989
GMC K2500 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC K2500 5000cc, 5.0L/305CI V8 1987, 1988, 1989
GMC R Series 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC R Series 5000cc, 5.0L/305CI V8 1987
GMC R Series 5000cc, 5L/305CI V8 1988, 1989
GMC R1500 4300cc, 4.3L/262CI V6 1987
GMC R1500 5000cc, 5.0L/305CI V8 1987
GMC R2500 4300cc, 4.3L/262CI V6 1987
GMC R2500 5000cc, 5.0L/305CI V8 1987
GMC SAFARI VAN 4.3L(262) V 1987, 1988, 1989
GMC SAFARI VAN 4.3L(262) V 1987, 1988, 1989
GMC Safari 4300cc, 4.3L/262CI V6 1987, 1988, 1989
GMC SUBURBAN 5.0L(305) V 1987
GMC SUBURBAN 5.0L(305) V 1987
GMC Suburban 5012cc, 5.0L/305CI V6 1987
GMC V Series 4300cc, 4.3L/262CI V6 1988, 1989
GMC V Series 5000cc, 5L/305CI V8 1988, 1989
GMC V1500 4300cc, 4.3L/262CI V6 1987
GMC V1500 5000cc, 5.0L/305CI V8 1987
Oldsmobile CUSTOM CRUISER 5.0L(305) V 1991, 1992
Oldsmobile CUSTOM CRUISER 5.7L(350) V 1992
Oldsmobile Custom Cruiser 5000cc, 5.0L/305CI V8 1991, 1992
Oldsmobile Custom Cruiser 5733cc, 5.7L/350CI V8 1992
Pontiac Firebird Base 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Base 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac Firebird Formula 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am GTA 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am GTA 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am GTA 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am GTA 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5000cc, 5.0L/305CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac Firebird Trans Am 5700cc, 5.7L/350CI V8 Naturally Aspirated 1989
Pontiac FIREBIRD 5.0L(305) V 1988, 1989
Pontiac FIREBIRD 5.0L(305) V 1988, 1989
Pontiac FIREBIRD 5.0L(305) V 1988, 1989, 1990, 1991
Pontiac FIREBIRD 5.0L(305) V 1990, 1991
Pontiac FIREBIRD 5.0L(305) V 1992
Pontiac FIREBIRD 5.0L(305) V 1992
Pontiac FIREBIRD 5.7L(350) V 1988, 1989, 1990, 1991, 1992
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988, 1989
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988, 1989
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988, 1989, 1990, 1991, 1992
Pontiac Firebird 5000cc, 5.0L/305CI V8 1988, 1989, 1990, 1991, 1992
Pontiac Firebird 5700cc, 5.7L/350CI V8 1988
Pontiac Firebird 5700cc, 5.7L/350CI V8 1988, 1989
Pontiac Firebird 5700cc, 5.7L/350CI V8 1988, 1989
Pontiac Firebird 5733cc, 5.7L/350CI V8 1988, 1989, 1990, 1991, 1992
MCR PART NUMBER: 7917N
