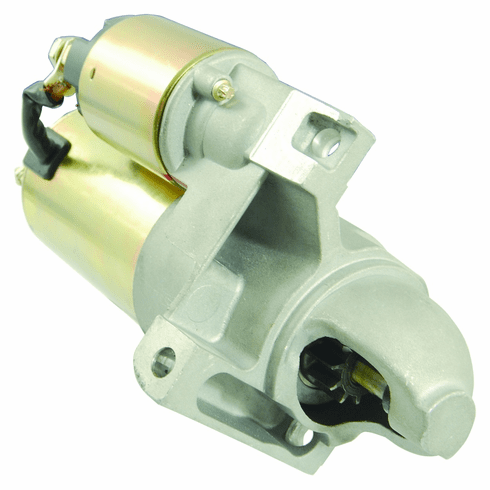

Straight Mount Mini High Torque Starter for 153 Tooth Flywheel
**All parts are 100% brand new and meet or exceed OEM specifications.**
**Units may differ in color from listing photos and are for U.S. Models only (unless otherwise noted)**
**Fitment information below is accurate to the best of our knowledge and should be used for reference only. If you have any questions about fitment, please call our parts specialist before placing your order. For further assistance call 586-257-1515
Product Description
Description: Starter
OEM(s): Delco
Family: Delco PG260L
Voltage: 12
Power: 1.7kW / 2.28HP
Rotation: CW
Starter Type: PMGR
Number of Teeth: 11
Gear OD: 1.165in / 29.6mm
Mtg Ear 1 Hole: 10.0mm Unthreaded
Mtg Ear 2 Hole: 10.0mm Unthreaded
Notes:
Straight Mounting Flange
Chevrolet Big Block V8 Engines w/ 153-Tooth Flywheel or Small Blocks
Upgrade the old, heavy 9-tooth, 10MT design to a high output, lightweight, 11-Tooth PG260M starter. Ideal for hi-performance, marine & street-rod applications.
4-Terminal solenoid w/ relay & switch terminals.
100% New High-performance retrofit
Smaller and lighter, 7.7 lbs. Field case assys. are 100% tested on a computerized gaussmeter to measure magnet strength & position.
Zinc plated field case, solenoid, C.E. cover & hardware Armatures are precision balanced & feature banded hairpins Commutators are stake-welded & polished for longer brush life Starter, drive & solenoid are endurance tested
Replaces:
Delco 10465293, 10496870, 1107340, 1107352, 1107367, 1107385, 1108320, 1108326, 1108327, 1108331, 1108351, 1108354, 1108371, 1108381, 1108392, 1108420, 1108433, 1108490, 1108497, 1108499, 1108504, 1108507, 1108521, 1108743, 1108760, 1108763, 1108768, 1108789, 1108791, 1109024, 1109038, 1109041, 1109062, 1109063, 12304203, 1894140, 19136156, 1988602, 1988711, 1998227, 19136222, 9000796, 9000798
Denso 280-5109
HYSTER 1486530
LETRIKA (ISKRA) IS 9315
USED ON:
Buick ROADMASTER 5.7L(350) V 1995
Buick ROADMASTER 5.7L(350) V 1996
Buick Roadmaster 5700cc, 5.7L/350CI V8 1996
Buick Roadmaster Estate Wagon Wagon 5700cc, 5.7L/350CI V8 1995
Cadillac FLEETWOOD 5.7L(350) V 1996
Cadillac Fleetwood 5700cc, 5.7L/350CI V8 1996
Chevrolet CAMARO 5.7L(350) V 1995, 1996, 1997
Chevrolet Camaro Z28 30th Anniversary Edition 5700cc, 5.7L/350CI V8 1997
Chevrolet Camaro Z28 5700cc, 5.7L/350CI V8 1995, 1996, 1997
Chevrolet Camaro Z28 SS 30th Anniversary Edition 5700cc, 5.7L/350CI V8 1997
Chevrolet CAPRICE 5.7L(350) V 1996
Chevrolet Caprice 5700cc, 5.7L/350CI V8 1996
Chevrolet IMPALA 5.7L(350) V 1996
Chevrolet Impala 5700cc, 5.7L/350CI V8 1996
Pontiac FIREBIRD 5.7L(350) V 1995, 1996, 1997
Pontiac Firebird Formula 5700cc, 5.7L/350CI V8 1995, 1996, 1997
Pontiac Firebird Trans Am 5700cc, 5.7L/350CI V8 1995, 1996, 1997
Buick (1964-1987)
Cadillac (1965-1984)
Chevrolet (1962-1992)
GMC (1963-1987)
Gray (1966-1968)
Jeep (1966-1971)
Massey Ferguson (1967-1970)
New Idea (1965-1966)
Oldsmobile Small Block (1964-1987)
Pontiac Small Block (1964-1992)
Studebaker (1965-1966)
Teledyne (1966-1968)
Universal (1963-1964)
MCR PART NUMBER: 6470HR
